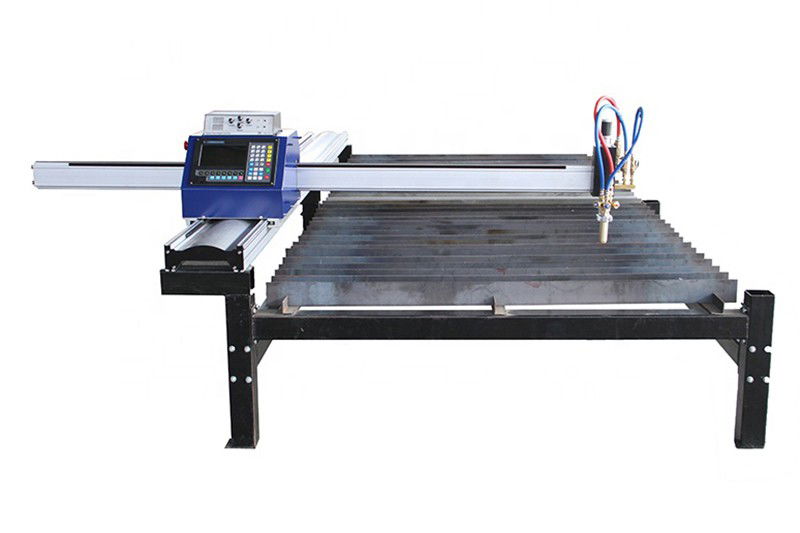

Portable CNC Plasma Cutting Machine

Model

SCT3015-1500X3000

Power Supply Voltage

220V/110V

Power Supply Frequency

50HZ / 60HZ

Rated Power Supply

180W

LCD Display Dimension

7.0Inches

Effective Cutting Width (X axis)

1500mm

Effective Cutting Length (Y axis)

3000mm

Cutting Speed

0-3000mm per minute

Plasma Cutting Thickness

2–22mm ( Depends on plasma power source capacity)

Flame Cutting Thickness

5-150mm mild steel

Certificate

CE, ISO9001:2000

Cross Beam Length

2200mm

Longitudinal Rail Length

4000mm

Longitudinal Rail Width

196mm

Host Machine Dimension (L*W*H)

508*344*305 mm

Cross Beam Weight

9.3kg

Host Machine Weight

26.7kg

Longitudinal Rail Weight

34.5kg

Total Net Weight

70.5kg

Plasma Power Source

Victor Cutmaster151 ,CutmasterA120 Hypertherm Power MAX 45/65/85/105/125

ESAB ESP101, Any other brand plasma supply

Plasma Air

Only press Air

Plasma Air Pressure

Max.0.8 mpa
