Sheet Metal Fiber Laser Cutting Machine
The Fiber Laser Cutting Machine is a state-of-the-art equipment that revolutionizes the manufacturing industry with its unparalleled cutting capabilities. By harnessing the power of fiber laser technology, this machine delivers exceptional precision and speed, making it suitable for various cutting tasks, from intricate designs to high-volume production runs. Its robust construction and intelligent control system optimize performance and reliability, ensuring consistent and accurate results. With its ability to process a multitude of materials, including metals, plastics, and composites, this machine offers businesses a competitive edge in meeting the demands of today's dynamic market. Whether used for prototyping, custom fabrication, or mass production, this cutting-edge technology represents a significant advancement in modern manufacturing processes.
- High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
- The laser cutting head does not come into contact with the surface of the material and does not scratch the work piece.
- The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the work piece is very small, and there is no mechanical deformation.
- It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
The Body Of Machine
The body of machine is weldwd by the square tube. The advantage of this body is that body is stronger, and the welding area is lee than that welded by plate.

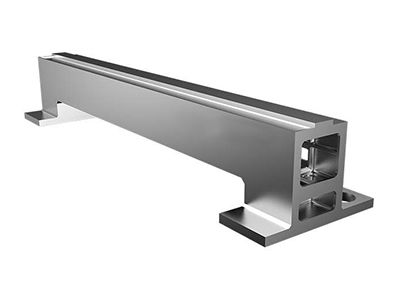

The Crossbeam Of Machine
The crossbeam is casting by aluminum, the stability is better.
The Laser Source
Max and Raycus laser source, laser source is the most important of fiber laser cutting machine.
The cutting thickness is depended on the fiber laser source.
The Laser Head
Modular design with easy maintenance.
Dual water cooling circuits.
Auto focus to reduce human intervention and improve piercing and cutting efficiency.
3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
Parameters
S. No. | Model | Name | Quantity | Remarks |
|---|---|---|---|---|
1 | HN-3015 | Fiber Power (3000*1500) | 1 set | Jinan Up Bull |
2 | Laser source | 1500W-6000W | 1 set | Raycus / IPG/ Max |
3 | Water Chiller | Special water chiller for fiber laser generator | 1 set | Standard |
4 | Laser head | High accuracy professional fiber laser head | 1 set | TAG Italy / Raytools / WSX |
5 | Control system | Cypcut | 1 set | Cypcut |
6 | Driving system | Japan High speed Yaskawa servo motor | 4 sets | Japanese Yaskawa servo motor |
7 | Reduction gear | French Motovario / Japan Shimpho | 3 set | French Motovario |
8 | Electric components | Schneider France | 1 set | Omron / Scheider |
9 | Guide rail | Taiwan Hiwin | 1 set | Taiwan ABBA |
10 | Rack | Taiwan YYC / Apex | 1 set | Taiwan YYC |
11 | Proportional valve | Japan SMC | 1 set | Japanese SMC |
BROCHURE LINK :- SCT Company LASER CUTTING.pdf
