Table Type CNC Plasma Cutting Machine

TABLE TYPE CNC PLASMA CUTTING MACHINE

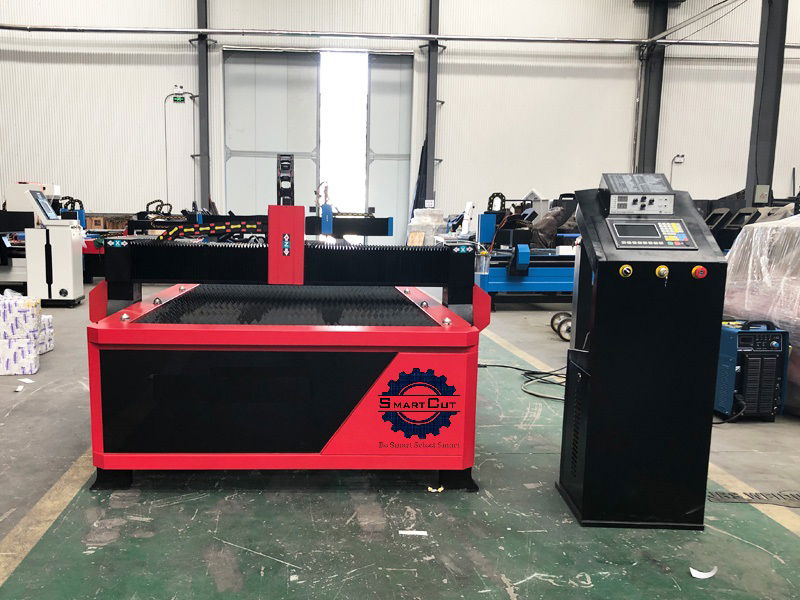

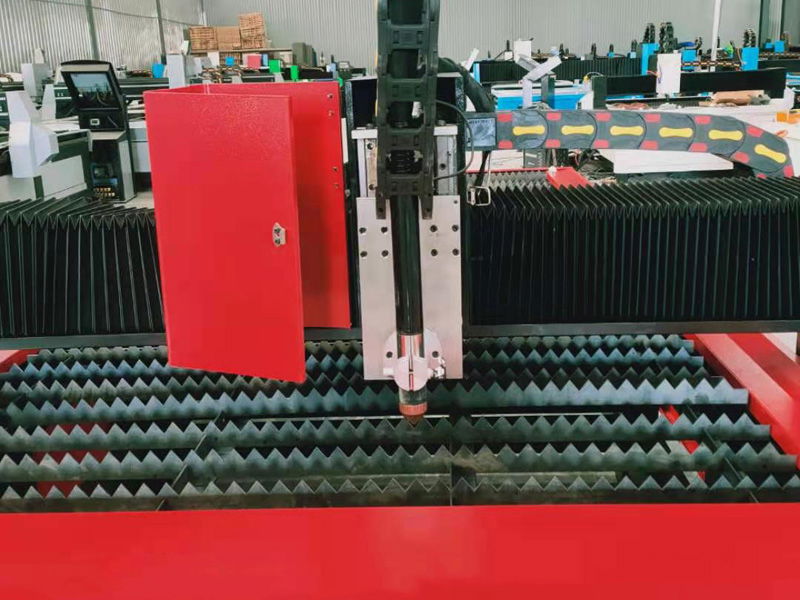

This CNC machine for sheet metal cutting table-Trailblazer adopts integral structure, making installation easier and more reliable. This cutting table adopts double-side driving to make the torch does longitudinal movement followed by straight tracks. The light design of the crossbeam has good rigidity, light self-weight, and good stability of movement. The machine is equipped with water tank type dust-removing equipment, in order to achieve environmental protection requirements; a smoking type dust-removing equipment also can be applied according to the customer’s needs. The plasma table is suitable for high-speed cutting thin sheet made of stainless steel, aluminium sheet and nonferrous metals etc. Additionally, it also has able to cutting thick plate. The machine is widely applied for sheet-metal working, auto parts, Wind turbines, and steel mould industries, etc .

Machine Technical Parameters For CNC Plasma Cutting Machine:

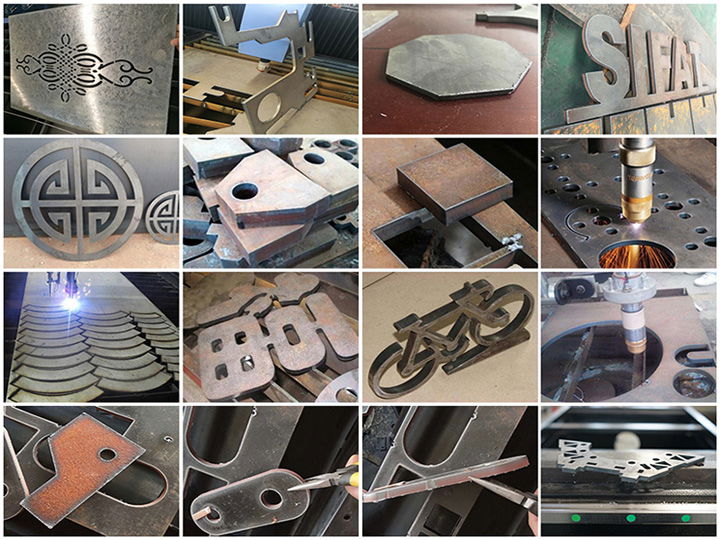

CUTTING SAMPLES

Significance and Advantages of 5x10 Size Table in Metal Fabrication

This is perhaps the most popular configuration of a CNC plasma cutting table for any industry. It is significant in metal fabrication and cutting. Several key reasons for being a proper choice are given here.

1. Versatility: Metal sheets of 5 feet by 10 feet are considered standard for industrial manufacturing. The 5x10 bed size provides a versatile platform and allows fabricators to work with a variety of sheet sizes.

2. Optimal Material Usage: The 5x10 size allows fabricators to nest multiple parts on a single sheet. This minimizes costly material waste.

3. Cost-effectiveness: 5x10 CNC plasma cutting tables offer a balance between size and affordability. Despite having a 5 feet by 10 feet bed they require less space to set up. This offers accessibility to small to medium-sized fabrication shops and businesses while still being manageable in less space.

4. Ease of Integration: These tables are workflow-friendly with a standard setup that requires no extra modification to the workspace and are easy to integrate.

5. Adaptability to Various Projects: A diverse range of fabrication and manufacturing features makes them adaptable to small to large metal fabrication. Whether fabricating small components or cutting larger panels and sheets, the 5x10 size provides enough space to handle a diverse range of fabrication tasks.

Components of a CNC Plasma Cutting Table

Knowing the components and parts of a CNC plasma cutting table is always a firsthand lesson for any beginner. The primary components are,

1. Plasma Torch

2. CNC Controller

3. Cutting Bed

4. Power Source

5. Software

6. Motion Control System

7. Torch Height Control (THC) and

8. Fume Extraction System

Tips for Maximizing Efficiency and Performance

It is important to measure and ensure the maximum efficiency of your cutting table to achieve ultimate profit out of your production. A few tips can boost your table’s performance in the long run. Additionally, you will find your CNC plasma cutting table a more cost-effective tool in the long run.

⇲ Regular maintenance is a must to ensure all components are in optimal condition.

⇲ Regular calibration is similarly important to maintain accuracy and consistency in cutting.

⇲ Use high-quality consumables such as electrodes, nozzles, and cutting tips.

⇲ Optimize cutting parameters by experimenting with different settings.

⇲ Make sure the material is properly secured before starting the machining.

⇲ Train the operator on nesting software and advanced software features.

⇲ Monitor performance metrics and quality of production routinely.
